XTB-2T Ball Nose End Mills
-
Carbide
MG -
Grain Size
0.6μm -
Helix Angle
30° -
Flutes
2 -
HRC
55 -
Coating
NaNo
TiaLN -
Flute Edge
Tapered

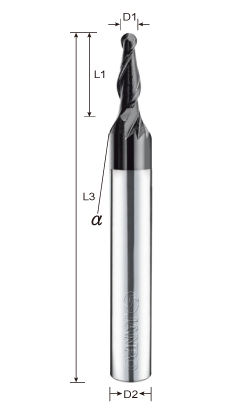

| Type No. | Small Mill Dia | Flute Length | Taper Angle | Large Mill Dia | O.A.L. | Shank Dia |
|---|---|---|---|---|---|---|
| D1 | L1 | α | L3 | D2 | ||
| XTB~0040302 | R0.2 | 3 | 3° | 0.70 | 40 | 4 |
| XTB~0040502 | R0.2 | 3 | 5° | 0.89 | 40 | 4 |
| XTB~0040702 | R0.2 | 3 | 7° | 1.10 | 40 | 4 |
| XTB~0041002 | R0.2 | 3 | 10° | 1.41 | 40 | 4 |
| XTB~0060302 | R0.3 | 3 | 3° | 0.89 | 40 | 4 |
| XTB~0060502 | R0.3 | 3 | 5° | 1.08 | 40 | 4 |
| XTB~0060702 | R0.3 | 3 | 7° | 1.28 | 40 | 4 |
| XTB~0061002 | R0.3 | 3 | 10° | 1.58 | 40 | 4 |
| XTB~0100052 | R0.5 | 10 | 30' | 1.17 | 50 | 4 |
| XTB~0100102 | R0.5 | 10 | 1° | 1.35 | 50 | 4 |
| XTB~0100152 | R0.5 | 10 | 1°30' | 1.52 | 50 | 4 |
| XTB~0100202 | R0.5 | 10 | 2° | 1.70 | 50 | 4 |
| XTB~0100302 | R0.5 | 10 | 3° | 1.87 | 50 | 4 |
| XTB~0100402 | R0.5 | 10 | 4° | 20.5 | 50 | 4 |
| XTB~0100502 | R0.5 | 10 | 5° | 2.74 | 50 | 4 |
| XTB~0100702 | R0.5 | 10 | 7° | 3.44 | 50 | 4 |
| XTB~0150052 | R0.75 | 10 | 30' | 1.67 | 50 | 4 |
| XTB~0150102 | R0.75 | 10 | 1° | 1.85 | 50 | 4 |
| XTB~0150152 | R0.75 | 10 | 1°30' | 2.02 | 50 | 4 |
| XTB~0150202 | R0.75 | 10 | 2° | 2.20 | 50 | 4 |
| XTB~0150302 | R0.75 | 10 | 3° | 2.37 | 50 | 4 |
| XTB~0150402 | R0.75 | 10 | 4° | 2.55 | 50 | 4 |
| XTB~0150502 | R0.75 | 10 | 5° | 3.24 | 50 | 4 |
| XTB~0150702 | R0.75 | 10 | 7° | 3.94 | 50 | 4 |
| XTB~0151002 | R0.75 | 10 | 10° | 5.02 | 50 | 6 |
| XTB~0200052 | R1 | 13 | 30' | 2.22 | 50 | 4 |
| XTB~0200102 | R1 | 13 | 1° | 2.45 | 50 | 4 |
| XTB~0200152 | R1 | 13 | 1°30' | 2.68 | 50 | 4 |
| XTB~0200202 | R1 | 13 | 2° | 3.90 | 50 | 4 |
| XTB~0200302 | R1 | 13 | 3° | 3.13 | 50 | 4 |
| XTB~0200402 | R1 | 13 | 4° | 3.36 | 50 | 4 |
| XTB~0200502 | R1 | 13 | 5° | 4.27 | 50 | 6 |
| XTB~0200702 | R1 | 13 | 7° | 5.17 | 50 | 6 |
| XTB~0201002 | R1 | 13 | 10° | 6.56 | 60 | 8 |
| XTB~0250052 | R1.25 | 15 | 30' | 2.76 | 50 | 4 |
| XTB~0250102 | R1.25 | 15 | 1° | 3.03 | 50 | 4 |
| XTB~0250152 | R1.25 | 15 | 1°30' | 3.29 | 50 | 4 |
| XTB~0250202 | R1.25 | 15 | 2° | 3.56 | 50 | 4 |
| XTB~0250302 | R1.25 | 15 | 3° | 3.81 | 50 | 4 |
| XTB~0250402 | R1.25 | 15 | 4° | 4.07 | 50 | 6 |
| XTB~0250502 | R1.25 | 15 | 5° | 5.13 | 50 | 6 |
| XTB~0251002 | R1.25 | 15 | 10° | 7.77 | 60 | 8 |
| XTB~0300052 | R1.5 | 20 | 30' | 3.34 | 50 | 4 |
| XTB~0300102 | R1.5 | 20 | 1° | 3.60 | 50 | 4 |
| XTB~0300152 | R1.5 | 20 | 1°30' | 4.04 | 60 | 6 |
| XTB~0300202 | R1.5 | 20 | 2° | 4.39 | 60 | 6 |
| XTB~0300302 | R1.5 | 20 | 3° | 5.08 | 60 | 6 |
| XTB~0300402 | R1.5 | 20 | 4° | 5.78 | 60 | 6 |
| XTB~0300502 | R1.5 | 20 | 5° | 6.48 | 60 | 8 |
| XTB~0300702 | R1.5 | 20 | 7° | 7.90 | 60 | 8 |
