UNE-2T 極細深溝用立銑刀
-
Carbide
Super MG -
Grain Size
0.4μm -
Helix Angle
35° -
Flutes
2 -
HRC
60 -
Coating
x
TiaLN -
Flute Edge
Long Neck

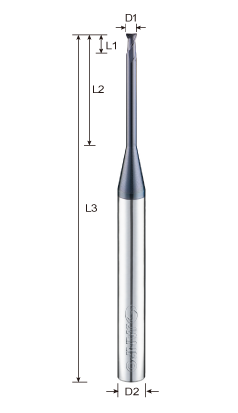

| 型號 | 直徑 | 頸徑 | 刃長 | 有效長 | 全長 | 柄俓 |
|---|---|---|---|---|---|---|
| D1 | L1 | L2 | L3 | D2 | ||
| UNE~05022 | 0.5 | 0.46 | 1 | 2 | 50 | 4 |
| UNE~05042 | 0.5 | 0.46 | 1 | 4 | 50 | 4 |
| UNE~05062 | 0.5 | 0.46 | 1 | 6 | 50 | 4 |
| UNE~10062 | 1 | 0.95 | 1.5 | 6 | 50 | 4 |
| UNE~10082 | 1 | 0.95 | 1.5 | 8 | 50 | 4 |
| UNE~10102 | 1 | 0.95 | 1.5 | 10 | 50 | 4 |
| UNE~10122 | 1 | 0.95 | 1.5 | 12 | 50 | 4 |
| UNE~15082 | 1.5 | 1.44 | 2 | 8 | 50 | 4 |
| UNE~15102 | 1.5 | 1.44 | 2 | 10 | 50 | 4 |
| UNE~15122 | 1.5 | 1.44 | 2 | 12 | 50 | 4 |
| UNE~15162 | 1.5 | 1.44 | 2 | 16 | 50 | 4 |
| UNE~20082 | 2 | 1.92 | 3 | 8 | 50 | 4 |
| UNE~20102 | 2 | 1.92 | 3 | 10 | 50 | 4 |
| UNE~20122 | 2 | 1.92 | 3 | 12 | 50 | 4 |
| UNE~20162 | 2 | 1.92 | 3 | 16 | 50 | 4 |
| UNE~20202 | 2 | 1.92 | 3 | 20 | 50 | 4 |
| UNE~25102 | 2.5 | 2.4 | 3 | 10 | 50 | 4 |
| UNE~25122 | 2.5 | 2.4 | 3 | 12 | 50 | 4 |
| UNE~25162 | 2.5 | 2.4 | 3 | 16 | 50 | 4 |
| UNE~25202 | 2.5 | 2.4 | 3 | 20 | 50 | 4 |
| UNE~30102 | 3 | 2.9 | 4 | 10 | 50 | 6 |
| UNE~30122 | 3 | 2.9 | 4 | 12 | 50 | 6 |
| UNE~30162 | 3 | 2.9 | 4 | 16 | 50 | 6 |
| UNE~30202 | 3 | 2.9 | 4 | 20 | 60 | 6 |
| UNE~30252 | 3 | 2.9 | 4 | 25 | 60 | 6 |
