產品介紹
XDRAF 鎢鋼直柄鑽頭
-
Carbide
MG -
Grain Size
0.6μm -
Point Angle
120°

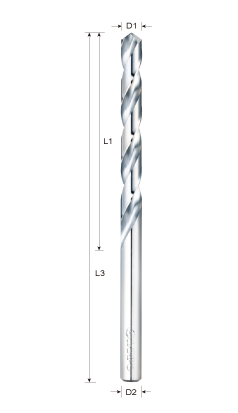

| 型號 | 直徑 | 刃長 | 全長 |
|---|---|---|---|
| D1 | L1 | L3 | |
| XDRAF010 | 1.0 | 12 | 34 |
| XDRAF011 | 1.1 | 12 | 36 |
| XDRAF012 | 1.2 | 16 | 38 |
| XDRAF013 | 1.3 | 16 | 38 |
| XDRAF014 | 1.4 | 18 | 40 |
| XDRAF015 | 1.5 | 18 | 40 |
| XDRAF016 | 1.6 | 20 | 43 |
| XDRAF017 | 1.7 | 20 | 43 |
| XDRAF018 | 1.8 | 22 | 46 |
| XDRAF010 | 1.9 | 22 | 46 |
| XDRAF020 | 2.0 | 24 | 49 |
| XDRAF021 | 2.1 | 24 | 49 |
| XDRAF022 | 2.2 | 27 | 53 |
| XDRAF023 | 2.3 | 27 | 53 |
| XDRAF024 | 2.4 | 30 | 57 |
| XDRAF025 | 2.5 | 30 | 57 |
| XDRAF026 | 2.6 | 30 | 57 |
| XDRAF027 | 2.7 | 33 | 61 |
| XDRAF028 | 2.8 | 33 | 61 |
| XDRAF029 | 2.9 | 33 | 61 |
| XDRAF030 | 3.0 | 33 | 61 |
| XDRAF031 | 3.1 | 36 | 65 |
| XDRAF032 | 3.2 | 36 | 65 |
| XDRAF033 | 3.3 | 36 | 65 |
| XDRAF034 | 3.4 | 39 | 70 |
| XDRAF035 | 3.5 | 39 | 70 |
| XDRAF036 | 3.6 | 39 | 70 |
| XDRAF037 | 3.7 | 39 | 70 |
| XDRAF038 | 3.8 | 43 | 75 |
| XDRAF039 | 3.9 | 43 | 75 |
| XDRAF040 | 4.0 | 43 | 75 |
| XDRAF041 | 4.1 | 43 | 75 |
| XDRAF042 | 4.2 | 43 | 75 |
| XDRAF043 | 4.3 | 47 | 80 |
| XDRAF044 | 4.4 | 47 | 80 |
| XDRAF045 | 4.5 | 47 | 80 |
| XDRAF046 | 4.6 | 47 | 80 |
| XDRAF047 | 4.7 | 47 | 80 |
| XDRAF048 | 4.8 | 52 | 86 |
| XDRAF049 | 4.9 | 52 | 86 |
| XDRAF050 | 5.0 | 52 | 86 |
| XDRAF051 | 5.1 | 52 | 86 |
| XDRAF052 | 5.2 | 52 | 86 |
| XDRAF053 | 5.3 | 52 | 86 |
| XDRAF054 | 5.4 | 57 | 93 |
| XDRAF055 | 5.5 | 57 | 93 |
| XDRAF056 | 5.6 | 57 | 93 |
| XDRAF057 | 5.7 | 57 | 93 |
| XDRAF058 | 5.8 | 57 | 93 |
| XDRAF059 | 5.9 | 57 | 93 |
| XDRAF060 | 6.0 | 57 | 93 |
| XDRAF061 | 6.1 | 63 | 101 |
| XDRAF062 | 6.2 | 63 | 101 |
| XDRAF063 | 6.3 | 63 | 101 |
| XDRAF064 | 6.4 | 63 | 101 |
| XDRAF065 | 6.5 | 63 | 101 |
| XDRAF066 | 6.6 | 63 | 101 |
| XDRAF067 | 6.7 | 63 | 101 |
| XDRAF068 | 6.8 | 69 | 109 |
| XDRAF069 | 6.9 | 69 | 109 |
| XDRAF070 | 7.0 | 69 | 109 |
| XDRAF071 | 7.1 | 69 | 109 |
| XDRAF072 | 7.2 | 69 | 109 |
| XDRAF073 | 7.3 | 69 | 109 |
| XDRAF074 | 7.4 | 69 | 109 |
| XDRAF075 | 7.5 | 69 | 109 |
| XDRAF076 | 7.6 | 75 | 117 |
| XDRAF077 | 7.7 | 75 | 117 |
| XDRAF078 | 7.8 | 75 | 117 |
| XDRAF079 | 7.9 | 75 | 117 |
| XDRAF080 | 8.0 | 75 | 117 |
| XDRAF081 | 8.1 | 75 | 117 |
| XDRAF082 | 8.2 | 75 | 117 |
| XDRAF083 | 8.3 | 75 | 117 |
| XDRAF084 | 8.4 | 75 | 117 |
| XDRAF085 | 8.5 | 75 | 117 |
| XDRAF086 | 8.6 | 81 | 125 |
| XDRAF087 | 8.7 | 81 | 125 |
| XDRAF088 | 8.8 | 81 | 125 |
| XDRAF089 | 8.9 | 81 | 125 |
| XDRAF090 | 9.0 | 81 | 125 |
| XDRAF091 | 9.1 | 81 | 125 |
| XDRAF092 | 9.2 | 81 | 125 |
| XDRAF093 | 9.3 | 81 | 125 |
| XDRAF094 | 9.4 | 81 | 125 |
| XDRAF095 | 9.5 | 81 | 125 |
| XDRAF096 | 9.6 | 87 | 133 |
| XDRAF097 | 9.7 | 87 | 133 |
| XDRAF098 | 9.8 | 87 | 133 |
| XDRAF099 | 9.9 | 87 | 133 |
| XDRAF100 | 10.0 | 87 | 133 |
| XDRAF101 | 10.1 | 87 | 133 |
| XDRAF102 | 10.2 | 87 | 133 |
| XDRAF103 | 10.3 | 87 | 133 |
| XDRAF104 | 10.4 | 87 | 133 |
| XDRAF105 | 10.5 | 87 | 133 |
| XDRAF106 | 10.6 | 87 | 133 |
| XDRAF107 | 10.7 | 94 | 142 |
| XDRAF108 | 10.8 | 94 | 142 |
| XDRAF109 | 10.9 | 94 | 142 |
| XDRAF110 | 11.0 | 94 | 142 |
| XDRAF111 | 11.1 | 94 | 142 |
| XDRAF112 | 11.2 | 94 | 142 |
| XDRAF113 | 11.3 | 94 | 142 |
| XDRAF114 | 11.4 | 94 | 142 |
| XDRAF115 | 11.5 | 94 | 142 |
| XDRAF116 | 11.6 | 94 | 142 |
| XDRAF117 | 11.7 | 94 | 142 |
| XDRAF118 | 11.8 | 94 | 142 |
| XDRAF119 | 11.9 | 101 | 151 |
| XDRAF120 | 12.0 | 101 | 151 |
| XDRAF121 | 12.1 | 101 | 151 |
| XDRAF122 | 12.2 | 101 | 151 |
| XDRAF123 | 12.3 | 101 | 151 |
| XDRAF124 | 12.4 | 101 | 151 |
| XDRAF125 | 12.5 | 101 | 151 |
| XDRAF126 | 12.6 | 101 | 151 |
| XDRAF127 | 12.7 | 101 | 151 |
| XDRAF128 | 12.8 | 101 | 151 |
| XDRAF129 | 12.9 | 101 | 151 |
| XDRAF130 | 13.0 | 101 | 151 |
