UBPT~2T Ball Nose End Mills
-
Carbide
Super MG -
Grain Size
0.4μm -
Helix Angle
30° -
Flutes
2 -
HRC
60 -
Coating
x
TiaLN -
Flute Edge
Ball

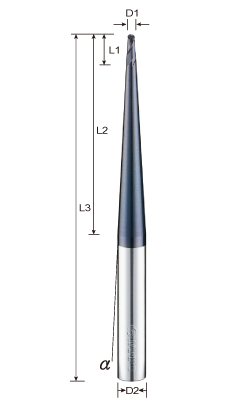

| Type No. | Diameter | Flute Length | Effective Length | O.A.L. | Shank Dia | Taper Angle |
|---|---|---|---|---|---|---|
| D1 | L1 | L2 | L3 | D2 | α | |
| UBPT~02052 | R1 | 3 | 60 | 100 | 6 | 0.5° |
| UBPT~02102 | R1 | 3 | 60 | 100 | 6 | 1° |
| UBPT~05152 | R1 | 3 | 60 | 100 | 6 | 1.5° |
| UBPT~02202 | R1 | 3 | 57 | 100 | 6 | 2° |
| UBPT~03052 | R1.5 | 4 | 60 | 100 | 6 | 0.5° |
| UBPT~03102 | R1.5 | 4 | 60 | 100 | 6 | 1° |
| UBPT~03152 | R1.5 | 4 | 57 | 100 | 6 | 1.5° |
| UBPT~03202 | R1.5 | 4 | 43 | 100 | 6 | 2° |
| UBPT~04052 | R2 | 5 | 60 | 100 | 6 | 0.5° |
| UBPT~04102 | R2 | 5 | 57 | 100 | 6 | 1° |
| UBPT~04152 | R2 | 5 | 38 | 100 | 6 | 1.5° |
| UBPT~04202 | R2 | 5 | 29 | 100 | 6 | 2° |
