XNB-2T 深沟用球头立铣刀
-
Carbide
MG -
Grain Size
0.6μm -
Helix Angle
30° -
Flutes
2 -
HRC
55 -
Coating
NaNo
TiaLN -
Flute Edge
Ball

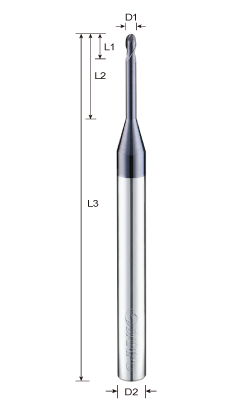

| 型号 | 直径 | 刃长 | 有效长 | 全长 | 柄俓 |
|---|---|---|---|---|---|
| D1 | L1 | L2 | L3 | D2 | |
| XNB~05022 | R0.25 | 1 | 2 | 50 | 4 |
| XNB~05042 | R0.25 | 1 | 4 | 50 | 4 |
| XNB~05062 | R0.25 | 1 | 6 | 50 | 4 |
| XNB~05082 | R0.25 | 1 | 8 | 50 | 4 |
| XNB~06042 | R0.3 | 1.2 | 4 | 50 | 4 |
| XNB~06062 | R0.3 | 1.2 | 6 | 50 | 4 |
| XNB~06082 | R0.3 | 1.2 | 8 | 50 | 4 |
| XNB~08042 | R0.4 | 1.2 | 4 | 50 | 4 |
| XNB~08062 | R0.4 | 1.2 | 6 | 50 | 4 |
| XNB~08082 | R0.4 | 1.2 | 8 | 50 | 4 |
| XNB~10062 | R0.5 | 1.5 | 6 | 50 | 4 |
| XNB~10082 | R0.5 | 1.5 | 8 | 50 | 4 |
| XNB~10102 | R0.5 | 1.5 | 10 | 50 | 4 |
| XNB~10122 | R0.5 | 1.5 | 12 | 50 | 4 |
| XNB~15082 | R0.75 | 2 | 8 | 50 | 4 |
| XNB~15102 | R0.75 | 2 | 10 | 50 | 4 |
| XNB~15122 | R0.75 | 2 | 12 | 50 | 4 |
| XNB~15162 | R0.75 | 2 | 16 | 50 | 4 |
| XNB~15202 | R0.75 | 2 | 20 | 50 | 4 |
| XNB~20082 | R1 | 3 | 8 | 50 | 4 |
| XNB~20102 | R1 | 3 | 10 | 50 | 4 |
| XNB~20122 | R1 | 3 | 12 | 50 | 4 |
| XNB~20162 | R1 | 3 | 16 | 50 | 4 |
| XNB~20202 | R1 | 3 | 20 | 50 | 4 |
| XNB~30082 | R1.5 | 4 | 8 | 50 | 6 |
| XNB~30102 | R1.5 | 4 | 10 | 50 | 6 |
| XNB~30122 | R1.5 | 4 | 12 | 50 | 6 |
| XNB~30162 | R1.5 | 4 | 16 | 50 | 6 |
| XNB~30202 | R1.5 | 4 | 20 | 60 | 6 |
| XNB~30252 | R1.5 | 4 | 25 | 60 | 6 |
| XNB~40122 | R2 | 5 | 12 | 75 | 6 |
| XNB~40162 | R2 | 5 | 16 | 75 | 6 |
| XNB~40202 | R2 | 5 | 20 | 75 | 6 |
| XNB~40252 | R2 | 5 | 25 | 75 | 6 |
| XNB~40302 | R2 | 5 | 30 | 75 | 6 |
