产品介绍
XTM-2T 微小径斜度立铣刀
-
Carbide
MG -
Grain Size
0.6μm -
Helix Angle
35° -
Flutes
2 -
HRC
55 -
Coating
NaNo
TiaLN -
Flute Edge
Tapered

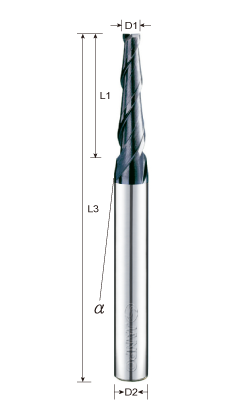

| 型号 | 先端径 | 刃长 | 斜度 | 粗端径 | 全长 | 柄俓 |
|---|---|---|---|---|---|---|
| D1 | L1 | α | L3 | D2 | ||
| XTM~0020052 | 0.2 | 0.8 | 30' | 0.21 | 38 | 3 |
| XTM~0020102 | 0.2 | 0.8 | 1° | 0.23 | 38 | 3 |
| XTM~0020152 | 0.2 | 0.8 | 1°30' | 0.24 | 38 | 3 |
| XTM~0020202 | 0.2 | 0.8 | 2° | 0.26 | 38 | 3 |
| XTM~0020302 | 0.2 | 0.8 | 3° | 0.28 | 38 | 3 |
| XTM~0020402 | 0.2 | 0.8 | 4° | 0.31 | 38 | 3 |
| XTM~0020502 | 0.2 | 0.8 | 5° | 0.34 | 38 | 3 |
| XTM~0020702 | 0.2 | 0.8 | 7° | 0.40 | 38 | 3 |
| XTM~0021002 | 0.2 | 0.8 | 10° | 0.48 | 38 | 3 |
| XTM~0030052 | 0.3 | 1.2 | 30' | 0.32 | 38 | 3 |
| XTM~0030102 | 0.3 | 1.2 | 1° | 0.34 | 38 | 3 |
| XTM~0030152 | 0.3 | 1.2 | 1°30' | 0.36 | 38 | 3 |
| XTM~0030202 | 0.3 | 1.2 | 2° | 0.38 | 38 | 3 |
| XTM~0030302 | 0.3 | 1.2 | 3° | 0.43 | 38 | 3 |
| XTM~0030402 | 0.3 | 1.2 | 4° | 0.47 | 38 | 3 |
| XTM~0030502 | 0.3 | 1.2 | 5° | 0.51 | 38 | 3 |
| XTM~0030702 | 0.3 | 1.2 | 7° | 0.59 | 38 | 3 |
| XTM~0031002 | 0.3 | 1.2 | 10° | 0.72 | 38 | 3 |
| XTM~0040052 | 0.4 | 1.6 | 30' | 0.43 | 38 | 3 |
| XTM~0040102 | 0.4 | 1.6 | 1° | 0.46 | 38 | 3 |
| XTM~0040152 | 0.4 | 1.6 | 1°30' | 0.48 | 38 | 3 |
| XTM~0040202 | 0.4 | 1.6 | 2° | 0.51 | 38 | 3 |
| XTM~0040302 | 0.4 | 1.6 | 3° | 0.57 | 38 | 3 |
| XTM~0040402 | 0.4 | 1.6 | 4° | 0.62 | 38 | 3 |
| XTM~0040502 | 0.4 | 1.6 | 5° | 0.68 | 38 | 3 |
| XTM~0040702 | 0.4 | 1.6 | 7° | 0.79 | 38 | 3 |
| XTM~0041002 | 0.4 | 1.6 | 10° | 0.96 | 38 | 3 |
| XTM~0060052 | 0.6 | 2 | 30' | 0.63 | 38 | 3 |
| XTM~0060102 | 0.6 | 2 | 1° | 0.67 | 38 | 3 |
| XTM~0060152 | 0.6 | 2 | 1°30' | 0.70 | 38 | 3 |
| XTM~0060202 | 0.6 | 2 | 2° | 0.74 | 38 | 3 |
| XTM~0060252 | 0.6 | 2 | 2°30' | 0.77 | 38 | 3 |
| XTM~0060302 | 0.6 | 2 | 3° | 0.81 | 38 | 3 |
| XTM~0060502 | 0.6 | 2 | 5° | 0.95 | 38 | 3 |
| XTM~0060702 | 0.6 | 2 | 7° | 1.09 | 38 | 3 |
| XTM~0061002 | 0.6 | 2 | 10° | 1.31 | 38 | 3 |
| XTM~0061202 | 0.6 | 2 | 12° | 1.45 | 38 | 3 |
| XTM~0061502 | 0.6 | 2 | 15° | 1.67 | 38 | 3 |
| XTM~0080052 | 0.8 | 3 | 30' | 0.85 | 38 | 3 |
| XTM~0080102 | 0.8 | 3 | 1° | 0.90 | 38 | 3 |
| XTM~0080152 | 0.8 | 3 | 1°30' | 0.96 | 38 | 3 |
| XTM~0080202 | 0.8 | 3 | 2° | 1.01 | 38 | 3 |
| XTM~0080252 | 0.8 | 3 | 2°30' | 1.06 | 38 | 3 |
| XTM~0080302 | 0.8 | 3 | 3° | 1.11 | 38 | 3 |
| XTM~0080502 | 0.8 | 3 | 5° | 1.32 | 38 | 3 |
| XTM~0080702 | 0.8 | 3 | 7° | 1.54 | 38 | 3 |
| XTM~0081002 | 0.8 | 3 | 10° | 1.86 | 38 | 3 |
| XTM~0081202 | 0.8 | 3 | 12° | 2.08 | 38 | 3 |
| XTM~0081502 | 0.8 | 3 | 15° | 2.41 | 38 | 3 |
