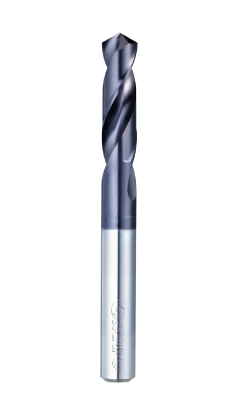

XDRES End Mill Shank-Solid Carbide High Speed Drills
-
Carbide
MG -
Grain Size
0.6μm -
Helix Angle
30° -
Coating
x
TiaLN -
Point Angle
120°

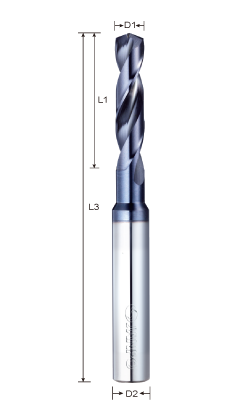

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
|---|---|---|---|---|
| D1 | L1 | L3 | D2 | |
| XDRES020 | 2.0 | 13 | 44 | 3 |
| XDRES021 | 2.1 | 13 | 44 | 3 |
| XDRES022 | 2.2 | 13 | 44 | 3 |
| XDRES023 | 2.3 | 13 | 44 | 3 |
| XDRES024 | 2.4 | 15 | 46 | 3 |
| XDRES025 | 2.5 | 15 | 46 | 3 |
| XDRES026 | 2.6 | 15 | 46 | 3 |
| XDRES027 | 2.7 | 15 | 48 | 3 |
| XDRES028 | 2.8 | 17 | 48 | 3 |
| XDRES029 | 2.9 | 17 | 48 | 3 |
| XDRES030 | 3.0 | 17 | 48 | 3 |
| XDRES031 | 3.1 | 19 | 50 | 4 |
| XDRES032 | 3.2 | 19 | 50 | 4 |
| XDRES033 | 3.3 | 19 | 50 | 4 |
| XDRES034 | 3.4 | 21 | 52 | 4 |
| XDRES035 | 3.5 | 21 | 52 | 4 |
| XDRES036 | 3.6 | 21 | 52 | 4 |
| XDRES037 | 3.7 | 21 | 52 | 4 |
| XDRES038 | 3.8 | 21 | 52 | 4 |
| XDRES039 | 3.9 | 21 | 52 | 4 |
| XDRES040 | 4.0 | 21 | 52 | 4 |
| XDRES041 | 4.1 | 21 | 63 | 6 |
| XDRES042 | 4.2 | 21 | 63 | 6 |
| XDRES043 | 4.3 | 21 | 63 | 6 |
| XDRES044 | 4.4 | 25 | 68 | 6 |
| XDRES045 | 4.5 | 25 | 68 | 6 |
| XDRES046 | 4.6 | 25 | 68 | 6 |
| XDRES047 | 4.7 | 25 | 68 | 6 |
| XDRES048 | 4.8 | 27 | 70 | 6 |
| XDRES049 | 4.9 | 27 | 70 | 6 |
| XDRES050 | 5.0 | 27 | 70 | 6 |
| XDRES051 | 5.1 | 27 | 70 | 6 |
| XDRES052 | 5.2 | 27 | 70 | 6 |
| XDRES053 | 5.3 | 27 | 70 | 6 |
| XDRES054 | 5.4 | 29 | 72 | 6 |
| XDRES055 | 5.5 | 29 | 72 | 6 |
| XDRES056 | 5.6 | 29 | 72 | 6 |
| XDRES057 | 5.7 | 29 | 72 | 6 |
| XDRES058 | 5.8 | 29 | 72 | 6 |
| XDRES059 | 5.9 | 29 | 72 | 6 |
| XDRES060 | 6.0 | 29 | 72 | 6 |
| XDRES061 | 6.1 | 32 | 75 | 8 |
| XDRES062 | 6.2 | 32 | 75 | 8 |
| XDRES063 | 6.3 | 32 | 75 | 8 |
| XDRES064 | 6.4 | 32 | 75 | 8 |
| XDRES065 | 6.5 | 32 | 75 | 8 |
| XDRES066 | 6.6 | 32 | 75 | 8 |
| XDRES067 | 6.7 | 32 | 75 | 8 |
| XDRES068 | 6.8 | 35 | 78 | 8 |
| XDRES069 | 6.9 | 35 | 78 | 8 |
| XDRES070 | 7.0 | 35 | 78 | 8 |
| XDRES071 | 7.1 | 35 | 78 | 8 |
| XDRES072 | 7.2 | 35 | 78 | 8 |
| XDRES073 | 7.3 | 35 | 78 | 8 |
| XDRES074 | 7.4 | 35 | 78 | 8 |
| XDRES075 | 7.5 | 35 | 78 | 8 |
| XDRES076 | 7.6 | 35 | 78 | 8 |
| XDRES077 | 7.7 | 35 | 78 | 8 |
| XDRES078 | 7.8 | 35 | 78 | 8 |
| XDRES079 | 7.9 | 35 | 78 | 8 |
| XDRES080 | 8.0 | 35 | 78 | 8 |
| XDRES081 | 8.1 | 38 | 87 | 10 |
| XDRES082 | 8.2 | 38 | 87 | 10 |
| XDRES083 | 8.3 | 38 | 87 | 10 |
| XDRES084 | 8.4 | 38 | 87 | 10 |
| XDRES085 | 8.5 | 38 | 87 | 10 |
| XDRES086 | 8.6 | 41 | 90 | 10 |
| XDRES087 | 8.7 | 41 | 90 | 10 |
| XDRES088 | 8.8 | 41 | 90 | 10 |
| XDRES089 | 8.9 | 41 | 90 | 10 |
| XDRES090 | 9.0 | 41 | 90 | 10 |
| XDRES091 | 9.1 | 41 | 90 | 10 |
| XDRES092 | 9.2 | 41 | 90 | 10 |
| XDRES093 | 9.3 | 41 | 90 | 10 |
| XDRES094 | 9.4 | 41 | 90 | 10 |
| XDRES095 | 9.5 | 41 | 90 | 10 |
| XDRES096 | 9.6 | 44 | 93 | 10 |
| XDRES097 | 9.7 | 44 | 93 | 10 |
| XDRES098 | 9.8 | 44 | 93 | 10 |
| XDRES099 | 9.9 | 44 | 93 | 10 |
| XDRES100 | 10.0 | 44 | 93 | 10 |
| XDRES101 | 10.1 | 44 | 100 | 12 |
| XDRES102 | 10.2 | 44 | 100 | 12 |
| XDRES103 | 10.3 | 44 | 100 | 12 |
| XDRES104 | 10.4 | 44 | 100 | 12 |
| XDRES105 | 10.5 | 44 | 100 | 12 |
| XDRES106 | 10.6 | 44 | 100 | 12 |
| XDRES107 | 10.7 | 48 | 104 | 12 |
| XDRES108 | 10.8 | 48 | 104 | 12 |
| XDRES109 | 10.9 | 48 | 104 | 12 |
| XDRES110 | 11.0 | 48 | 104 | 12 |
| XDRES111 | 11.1 | 48 | 104 | 12 |
| XDRES112 | 11.2 | 48 | 104 | 12 |
| XDRES113 | 11.3 | 48 | 104 | 12 |
| XDRES114 | 11.4 | 48 | 104 | 12 |
| XDRES115 | 11.5 | 48 | 104 | 12 |
| XDRES116 | 11.6 | 48 | 104 | 12 |
| XDRES117 | 11.7 | 48 | 104 | 12 |
| XDRES118 | 11.8 | 48 | 104 | 12 |
| XDRES119 | 11.9 | 48 | 104 | 12 |
| XDRES120 | 12.0 | 48 | 104 | 12 |
| XDRES121 | 12.1 | 50 | 105 | 14 |
| XDRES122 | 12.2 | 50 | 105 | 14 |
| XDRES123 | 12.3 | 50 | 105 | 14 |
| XDRES124 | 12.4 | 50 | 105 | 14 |
| XDRES125 | 12.5 | 50 | 105 | 14 |
| XDRES126 | 12.6 | 50 | 105 | 14 |
| XDRES127 | 12.7 | 50 | 105 | 14 |
| XDRES128 | 12.8 | 50 | 105 | 14 |
| XDRES129 | 12.9 | 50 | 105 | 14 |
| XDRES130 | 13.0 | 50 | 105 | 14 |
