產品介紹
XNX-4T 深溝用立銑刀
-
Carbide
MG -
Grain Size
0.6μm -
Helix Angle
35° -
Flutes
4 -
HRC
55 -
Coating
NaNo
TiaLN -
Flute Edge
Long Neck

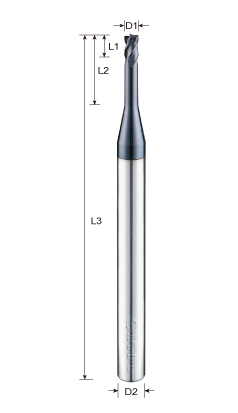

| 型號 | 直徑 | 頸徑 | 刃長 | 有效長 | 全長 | 柄俓 |
|---|---|---|---|---|---|---|
| D1 | L1 | L2 | L3 | D2 | ||
| XNX~10064 | 1 | 0.95 | 1.5 | 6 | 50 | 4 |
| XNX~10084 | 1 | 0.95 | 1.5 | 8 | 50 | 4 |
| XNX~10104 | 1 | 0.95 | 1.5 | 10 | 50 | 4 |
| XNX~10124 | 1 | 0.95 | 1.5 | 12 | 50 | 4 |
| XNX~15084 | 1.5 | 1.45 | 2 | 8 | 50 | 4 |
| XNX~15104 | 1.5 | 1.45 | 2 | 10 | 50 | 4 |
| XNX~15124 | 1.5 | 1.45 | 2 | 12 | 50 | 4 |
| XNX~15164 | 1.5 | 1.45 | 2 | 16 | 50 | 4 |
| XNX~20084 | 2 | 1.92 | 3 | 8 | 50 | 4 |
| XNX~20104 | 2 | 1.92 | 3 | 10 | 50 | 4 |
| XNX~20124 | 2 | 1.92 | 3 | 12 | 50 | 4 |
| XNX~20164 | 2 | 1.92 | 3 | 16 | 50 | 4 |
| XNX~20204 | 2 | 1.92 | 3 | 20 | 50 | 4 |
| XNX~25104 | 2.5 | 2.42 | 3 | 10 | 50 | 4 |
| XNX~25124 | 2.5 | 2.42 | 3 | 12 | 50 | 4 |
| XNX~25164 | 2.5 | 2.42 | 3 | 16 | 50 | 4 |
| XNX~25204 | 2.5 | 2.42 | 3 | 20 | 50 | 4 |
| XNX~30104 | 3 | 2.90 | 4 | 10 | 50 | 6 |
| XNX~30124 | 3 | 2.90 | 4 | 12 | 50 | 6 |
| XNX~30164 | 3 | 2.90 | 4 | 16 | 50 | 6 |
| XNX~30204 | 3 | 2.90 | 4 | 20 | 60 | 6 |
| XNX~30254 | 3 | 2.90 | 4 | 25 | 60 | 6 |
