產品介紹
XRT-2T 圓鼻角立銑刀
-
Carbide
MG -
Grain Size
0.6μm -
Helix Angle
35° -
Flutes
2 -
HRC
55 -
Coating
NaNo
TiaLN -
Flute Edge
Corner

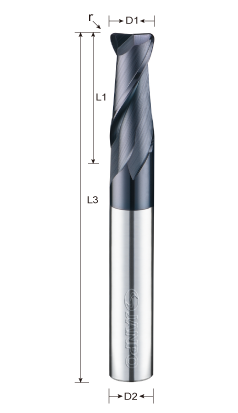

| 型號 | 直徑 | R角 | 刃長 | 全長 | 柄俓 |
|---|---|---|---|---|---|
| D1 | r | L1 | L3 | D2 | |
| XRT~01012 | 1 | 0.1 | 3 | 50 | 4 |
| XRT~01022 | 1 | 0.2 | 3 | 50 | 4 |
| XRT~01032 | 1 | 0.3 | 3 | 50 | 4 |
| XRT~01522 | 1.5 | 0.2 | 4 | 50 | 4 |
| XRT~01532 | 1.5 | 0.3 | 4 | 50 | 4 |
| XRT~02022 | 2 | 0.2 | 6 | 50 | 4 |
| XRT~02032 | 2 | 0.3 | 6 | 50 | 4 |
| XRT~02052 | 2 | 0.5 | 6 | 50 | 4 |
| XRT~02522 | 2.5 | 0.2 | 8 | 50 | 4 |
| XRT~03022 | 3 | 0.2 | 8 | 50 | 4 |
| XRT~03032 | 3 | 0.3 | 8 | 50 | 4 |
| XRT~03052 | 3 | 0.5 | 8 | 50 | 4 |
| XRT~03102 | 3 | 1 | 8 | 50 | 4 |
| XRT~04022 | 4 | 0.2 | 10 | 50 | 4 |
| XRT~04032 | 4 | 0.3 | 10 | 50 | 4 |
| XRT~04052 | 4 | 0.5 | 10 | 50 | 4 |
| XRT~04102 | 4 | 1 | 10 | 50 | 4 |
| XRT~04152 | 4 | 1.5 | 10 | 50 | 4 |
| XRT~05022 | 5 | 0.2 | 13 | 50 | 6 |
| XRT~05032 | 5 | 0.3 | 13 | 50 | 6 |
| XRT~05052 | 5 | 0.5 | 13 | 50 | 6 |
| XRT~05102 | 5 | 1 | 13 | 50 | 6 |
| XRT~06022 | 6 | 0.2 | 15 | 50 | 2 |
| XRT~06032 | 6 | 0.3 | 15 | 50 | 2 |
| XRT~06052 | 6 | 0.5 | 15 | 50 | 2 |
| XRT~06102 | 6 | 1 | 15 | 50 | 2 |
| XRT~06152 | 6 | 1.5 | 15 | 50 | 2 |
| XRT~06202 | 6 | 2 | 15 | 50 | 2 |
| XRT~08032 | 8 | 0.3 | 20 | 50 | 8 |
| XRT~08052 | 8 | 0.5 | 20 | 50 | 8 |
| XRT~08102 | 8 | 1 | 20 | 50 | 8 |
| XRT~08152 | 8 | 1.5 | 20 | 50 | 8 |
| XRT~08202 | 8 | 2 | 20 | 50 | 8 |
| XRT~08252 | 8 | 2.5 | 20 | 50 | 8 |
| XRT~08302 | 8 | 3 | 20 | 50 | 8 |
| XRT~10032 | 10 | 0.3 | 35 | 50 | 10 |
| XRT~10052 | 10 | 0.5 | 35 | 50 | 10 |
| XRT~10102 | 10 | 1 | 35 | 50 | 10 |
| XRT~10152 | 10 | 1.5 | 35 | 50 | 10 |
| XRT~10202 | 10 | 2 | 35 | 50 | 10 |
| XRT~10252 | 10 | 2.5 | 35 | 50 | 10 |
| XRT~10302 | 10 | 3 | 35 | 50 | 10 |
| XRT~12032 | 12 | 0.3 | 30 | 50 | 12 |
| XRT~12052 | 12 | 0.5 | 30 | 50 | 12 |
| XRT~12102 | 12 | 1 | 30 | 50 | 12 |
| XRT~12152 | 12 | 1.5 | 30 | 50 | 12 |
| XRT~12202 | 12 | 2 | 30 | 50 | 12 |
| XRT~12252 | 12 | 2.5 | 30 | 50 | 12 |
| XRT~12302 | 12 | 3 | 30 | 50 | 12 |
