SBNB~2T Ball Nose End Mills
-
Carbide
NaNo
Super MG -
Grain Size
2μm -
Helix Angle
30° -
Flutes
2 -
HRC
65 -
Coating
Naco-B -
Flute Edge
Ball

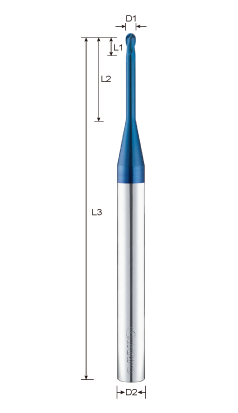

| Type No. | Diameter | Flute Length | Effective Length | O.A.L. | Shank Dia |
|---|---|---|---|---|---|
| D1 | L1 | L2 | L3 | D2 | |
| SBNB~05022 | R0.25 | 1 | 2 | 50 | 4 |
| SBNB~05042 | R0.25 | 1 | 4 | 50 | 4 |
| SBNB~05062 | R0.25 | 1 | 6 | 50 | 4 |
| SBNB~06022 | R0.3 | 1.2 | 4 | 50 | 4 |
| SBNB~06042 | R0.3 | 1.2 | 6 | 50 | 4 |
| SBNB~08062 | R0.4 | 1.2 | 6 | 50 | 4 |
| SBNB~08082 | R0.4 | 1.2 | 8 | 50 | 4 |
| SBNB~10062 | R0.5 | 1.5 | 6 | 50 | 4 |
| SBNB~10082 | R0.5 | 1.5 | 8 | 50 | 4 |
| SBNB~10102 | R0.5 | 1.5 | 10 | 50 | 4 |
| SBNB~10122 | R0.5 | 1.5 | 12 | 50 | 4 |
| SBNB~15082 | R0.75 | 2 | 8 | 50 | 4 |
| SBNB~15102 | R0.75 | 2 | 10 | 50 | 4 |
| SBNB~15122 | R0.75 | 2 | 12 | 50 | 4 |
| SBNB~20082 | R1 | 3 | 8 | 50 | 4 |
| SBNB~20102 | R1 | 3 | 10 | 50 | 4 |
| SBNB~20122 | R1 | 3 | 12 | 50 | 4 |
| SBNB~20162 | R1 | 3 | 16 | 50 | 4 |
| SBNB~30082 | R1.5 | 4 | 8 | 50 | 6 |
| SBNB~30102 | R1.5 | 4 | 10 | 50 | 6 |
| SBNB~30122 | R1.5 | 4 | 12 | 50 | 6 |
| SBNB~30162 | R1.5 | 4 | 16 | 50 | 6 |
| SBNB~30202 | R1.5 | 4 | 20 | 60 | 6 |
| SBNB~40122 | R2 | 5 | 12 | 75 | 6 |
| SBNB~40162 | R2 | 5 | 16 | 75 | 6 |
| SBNB~40202 | R2 | 5 | 20 | 75 | 6 |
| SBNB~40252 | R2 | 5 | 25 | 75 | 6 |
