Products
XA-2T Square End Mills
-
Carbide
MG -
Grain Size
0.6μm -
Helix Angle
55° -
Flutes
2 -
Coating
CRN -
Flute Edge
H

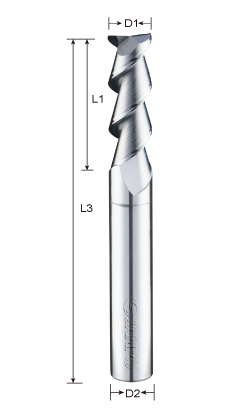

| Type No. | Diameter | Flute Length | O.A.L. | Shank Dia |
|---|---|---|---|---|
| D1 | L1 | L3 | D2 | |
| XA~0052 | 0.5 | 1.5 | 50 | 4 |
| XA~0102 | 1 | 3 | 50 | 4 |
| XA~0152 | 1.5 | 4 | 50 | 4 |
| XA~0202 | 2 | 6 | 50 | 4 |
| XA~0302 | 3 | 8 | 50 | 4 |
| XA~0402 | 4 | 12 | 50 | 4 |
| XA~0502 | 5 | 16 | 50 | 6 |
| XA~0602 | 6 | 18 | 50 | 6 |
| XA~0802 | 8 | 22 | 60 | 8 |
| XA~1002 | 10 | 28 | 75 | 10 |
| XA~1202 | 12 | 30 | 75 | 12 |
