XANBD-2T Ball Nose End Mills
-
Carbide
MG -
Grain Size
0.6μm -
Helix Angle
30° -
Flutes
2 -
Coating
SUPER
TiaLN -
Flute Edge
Ball

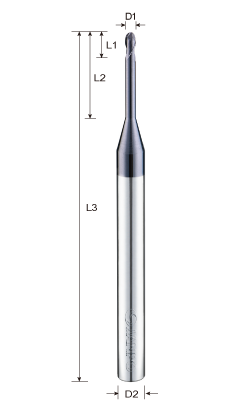

| Type No. | Diameter | Neck Dia | Flute Length | Effective Length | O.A.L. | Shank Dia |
|---|---|---|---|---|---|---|
| D1 | L1 | L2 | L3 | D2 | ||
| XANBD~1004 | R0.5 | 0.95 | 2 | 4 | 50 | 4 |
| XANBD~1006 | R0.5 | 0.95 | 2 | 6 | 50 | 4 |
| XANBD~1010 | R0.5 | 0.95 | 2 | 10 | 50 | 4 |
| XANBD~1012 | R0.5 | 0.95 | 2 | 12 | 50 | 4 |
| XANBD~1016 | R0.5 | 0.95 | 2 | 16 | 50 | 4 |
| XANBD~1506 | R0.75 | 1.45 | 3 | 6 | 50 | 4 |
| XANBD~1510 | R0.75 | 1.45 | 3 | 10 | 50 | 4 |
| XANBD~1512 | R0.75 | 1.45 | 3 | 12 | 50 | 4 |
| XANBD~1516 | R0.75 | 1.45 | 3 | 16 | 50 | 4 |
| XANBD~2008 | R1 | 1.92 | 4 | 8 | 50 | 4 |
| XANBD~2012 | R1 | 1.92 | 4 | 12 | 50 | 4 |
| XANBD~2014 | R1 | 1.92 | 4 | 14 | 50 | 4 |
| XANBD~2020 | R1 | 1.92 | 4 | 20 | 50 | 4 |
| XANBD~3012 | R1.5 | 2.90 | 6 | 12 | 50 | 6 |
| XANBD~3016 | R1.5 | 2.90 | 6 | 16 | 50 | 6 |
| XANBD~3020 | R1.5 | 2.90 | 6 | 20 | 60 | 6 |
| XANBD~3025 | R1.5 | 2.90 | 6 | 25 | 60 | 6 |
| XANBD~4010 | R2 | 3.88 | 8 | 10 | 60 | 6 |
| XANBD~4012 | R2 | 3.88 | 8 | 12 | 60 | 6 |
| XANBD~4016 | R2 | 3.88 | 8 | 16 | 60 | 6 |
| XANBD~4020 | R2 | 3.88 | 8 | 20 | 75 | 6 |
| XANBD~4025 | R2 | 3.88 | 8 | 25 | 75 | 6 |
